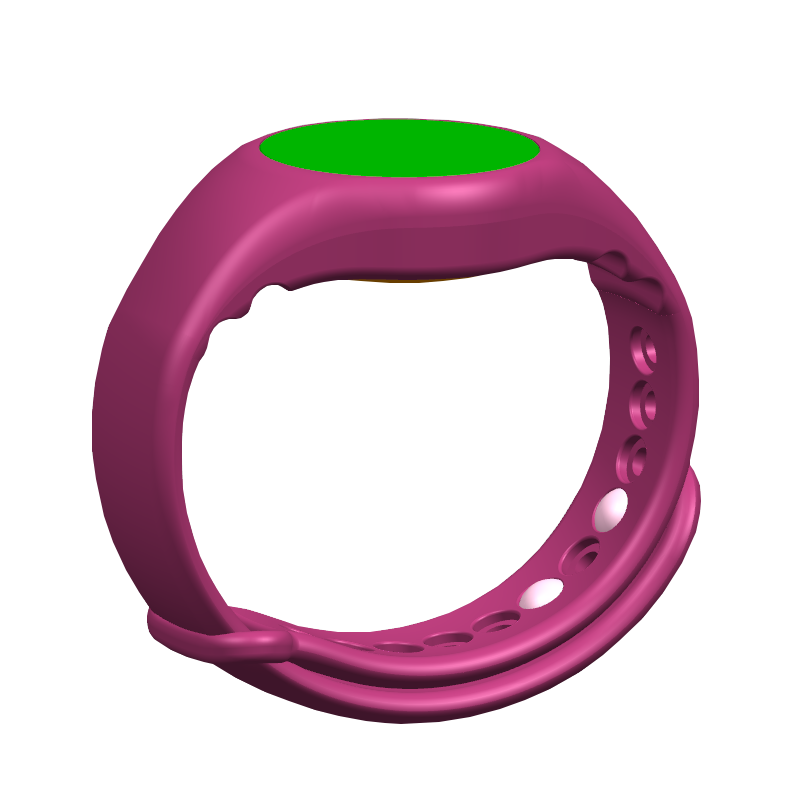

X1 is a Bluetooth health monitoring and indoor positioning Bracelet without screen design. The product is designed for children or workers, and the screen free design is more conducive to the standby time of the product. It can monitor environmental temperature, body surface temperature, heart rate, exercise, sleep and other health data. The bracelet supports Bluetooth AOA positioning to meet the health and behavior data management. At the same time, the built-in NFC can be applied to the one card in the park. Provide product development interface, support docking service and support product customization development.
Inquiry
X1 is a Bluetooth health monitoring and indoor positioning Bracelet without screen design.
The product is designed for children or workers, and the screen free design is more conducive to the standby time of the product. It can monitor environmental temperature, body surface temperature, heart rate, exercise, sleep and other health data. The bracelet supports Bluetooth AOA positioning to meet the health and behavior data management. At the same time, the built-in NFC can be applied to the one card in the park.
Essential information | |
Host size | 26*40*11.5 |
Host material | PC |
Band Length | 200mm |
Band Material | Food grade silica gel |
Watch buckle | Trans buckle |
weight | 15G |
Band Color | Black, white, orange, |
Waterproof level | IP67 |
NFC card | Optional |
Core parameters | |
master control | Arm -- cortex M4 kernel nrf52832 |
Bluetooth | BLE4.0 |
Acceleration sensor | Triaxial acceleration |
Heart rate sensor | PPG (photoplethysmography) high precision, dynamic heart rate sensing |
Key mode | Single key SOS |
Electrical performance parameters | |
Battery | Polymer 120mha |
Charging mode | Magnetic attraction |
Power Supply | 5V/1000ma |
Charging time | Charge for 1-2 hours |
Standby duration | Maximum 15 days (standby) |
Normal use | 5-7Days (moderate) |
Bluetooth parameters | |
Ble standard | BLE 5.0 |
Wireless band | 2.4G |
Transmit power | 4dBm |
Receiving sensitivity | - 95 ~ - 105dBm |
Positioning range | Data acquisition range radius 100m |
A variety of chip modules are built in the product
built in Bluetooth chip, support ble5.1 protocol, support Bluetooth AOA positioning,
built in RFID chip to support access control and small consumption
Built in G-sensor auxiliary positioning and action recognition.
Built in environment and body temperature monitoring sensor, with accuracy up to + - 0.1 degrees
Built in blood oxygen sensor to support continuous blood oxygen monitoring
Products can be applied to: middle schools, primary schools, kindergartens, amusement parks, scenic spots and hospitals
