The judicial anti dismantling smart watch R8 can monitor personnel's position, physiological health data and activity track, realize personnel health status monitoring and analysis, personnel cross-border alarm, emergency track investigation and analysis and other functions, prevent malignant accidents in advance, and improve the overall intelligent safety management. Provide product development interface, support docking service and support product customization development.
Inquiry

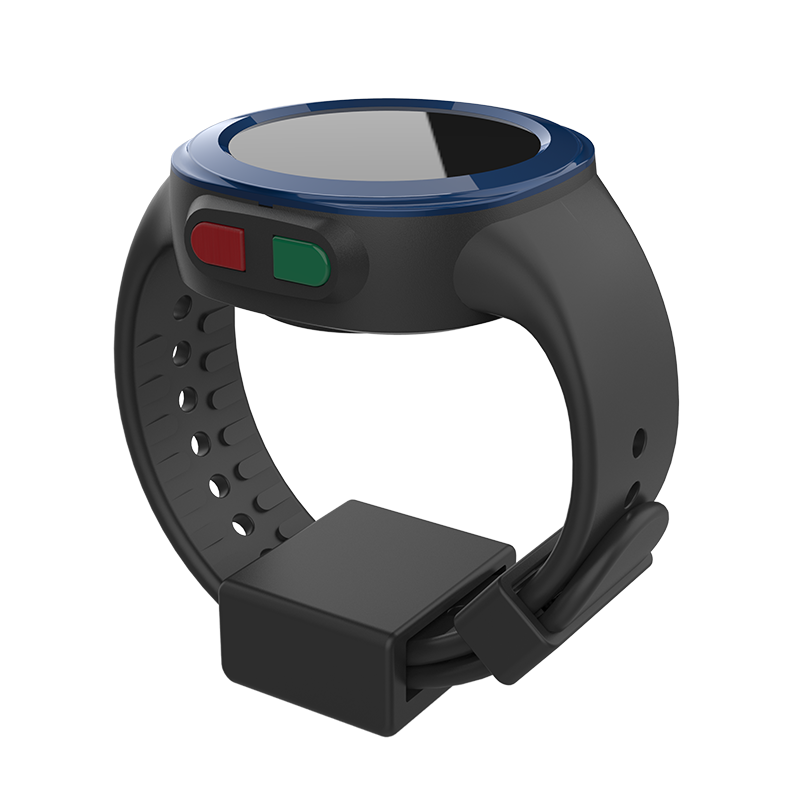

R9 is a professional watch with high-precision heart rate monitoring and positioning. The device integrates motion and heart rate sensors, which can continuously monitor heart rate changes and automatically identify activity status. The built-in ble5.0 module is compatible with a variety of Bluetooth protocols and IP68 waterproof design, so that the device can be used normally in various harsh environments. The watch strap has the function of anti disassembly alarm. The whole machine does not use any metal shell. It is safe and reliable to wear. It also has the important characteristics of low power consumption and low power electromagnetic radiation. It is especially suitable for prison, detention center, drug treatment center and other scenes to monitor the position and heart rate of indoor personnel. It can communicate with UWB and nb-iot.
essential information | |
Host size | 50*45*16.5 |
Host material | PC + carbon fiber |
Band Length | 225mm |
Band Material | silica gel |
Watch buckle | stainless steel |
weight | 60G |
Key | Mechanical key + touch key |
Band Color | Default black (customizable blue, green) |
Waterproof grade | IP68 |
Core parameters | |
master control | Arm -- cortex M4 kernel |
Bluetooth | BLE5.0 |
Acceleration sensor | 3Axis acceleration sensor |
Heart rate sensor | PPG (photoplethysmography) ultra low power, high precision, dynamic heart rate sensor |
Blood pressure sensor | PTT principle and measurement principle are recognized by the medical profession |
Display (optional) | No screen design, color screen design |
Electrical performance parameters | |
Battery | polymer |
capacity | 750 / 1000mha (1000mha without display, 750mha with display) |
Charging mode | Magnetic suction charging |
Power requirements | 5V 1A |
Charging time | Charge for 2 hours |
Standby time | 3More than 12 months |
Continuous heart rate test | Up to 30 days |
Bluetooth parameters | |
Ble standard | BLE4.0/ 5.0 |
wireless spectrum | 2.4G |
Transmitting power | 4dBm |
Receiving sensitivity | - 95 ~ - 105dBm |
Positioning range | R8n indoor and outdoor positioning: indoor radius 25m, outdoor radius 50m |
R8b / r8bs Bluetooth Judicial Watch: indoor radius 25m, outdoor radius 50m | |
R8u / r8us UWB indoor positioning Watch: 10-30cm | |
1. Reliability: the watch adopts built-in screw structure and highly anti disassembly design, which can not be disassembled by non professionals; the watch strap has built-in FPC circuit, which can automatically alarm when forced to disassemble. The shell is made of high strength carbon fiber material, which is resistant to high temperature and impact. The tensile test reaches 100 kg.
2. Safety: there is no metal leakage in the overall structure, and the watch strap does not contain metal materials and sharp materials, so as to prevent prisoners from dismantling, swallowing and other dangerous behaviors;
3. Easy maintenance: the watch is equipped with a large capacity battery, with a capacity of up to 1000mha and a maximum service life of more than 3 months. It supports external mobile power supply and centralized charging.
4. Health monitoring: the built-in heart rate sensor module provides real-time action recognition and continuous heart rate monitoring, which can expand the real-time wrist surface temperature monitoring.
5. Waterproof: the equipment adopts IP68 waterproof design, no need to take off the watch in shower and hand washing, no fear of water environment.
6. Distinguishability: each device has a corresponding ID number, which is accurate and easy to distinguish.
udicial anti dismantling positioning watch is suitable for detention center, drug treatment center, prison, police station and other places to strengthen the monitoring and management of temporary control personnel, as well as evidence collection and risk prevention; it is suitable for the management of personnel with low risk, low power consumption, continuous use up to 3 months, low maintenance cost, and can realize continuous data acquisition with Bluetooth gateway of our company, with simple interface and fast access Enter the cloud management platform.
