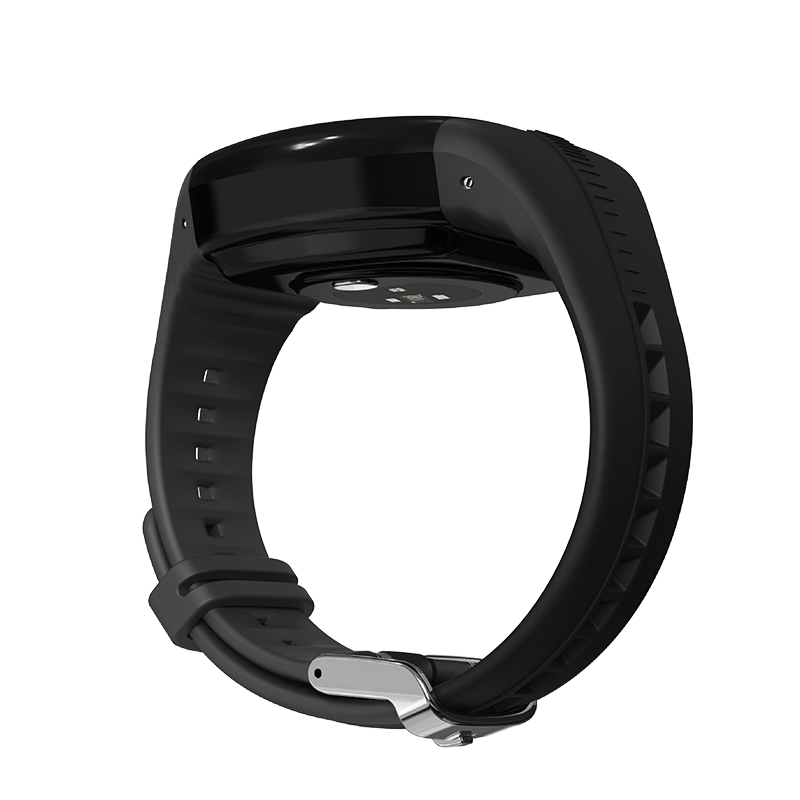

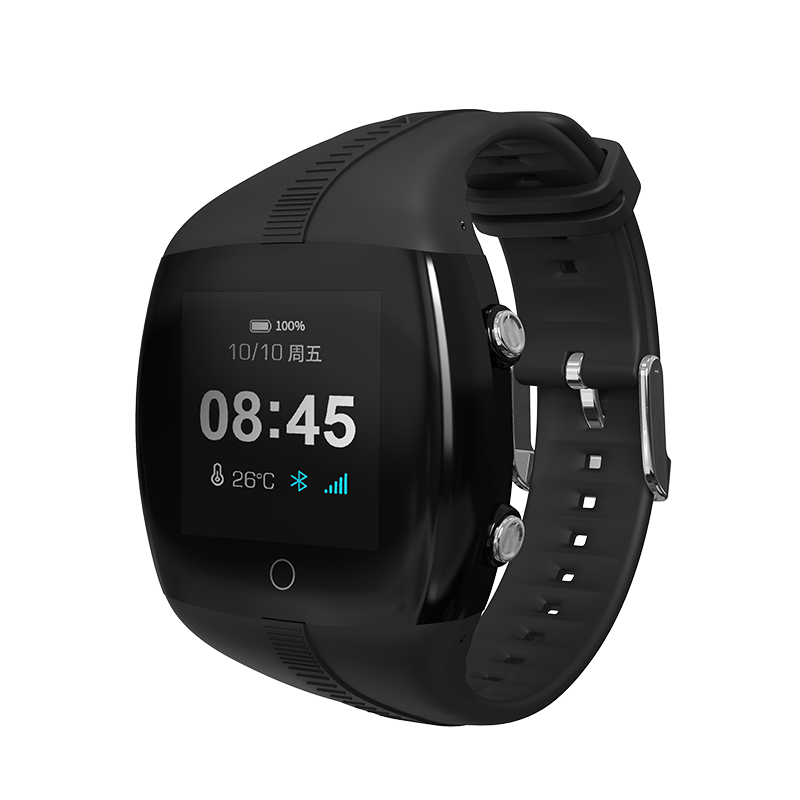

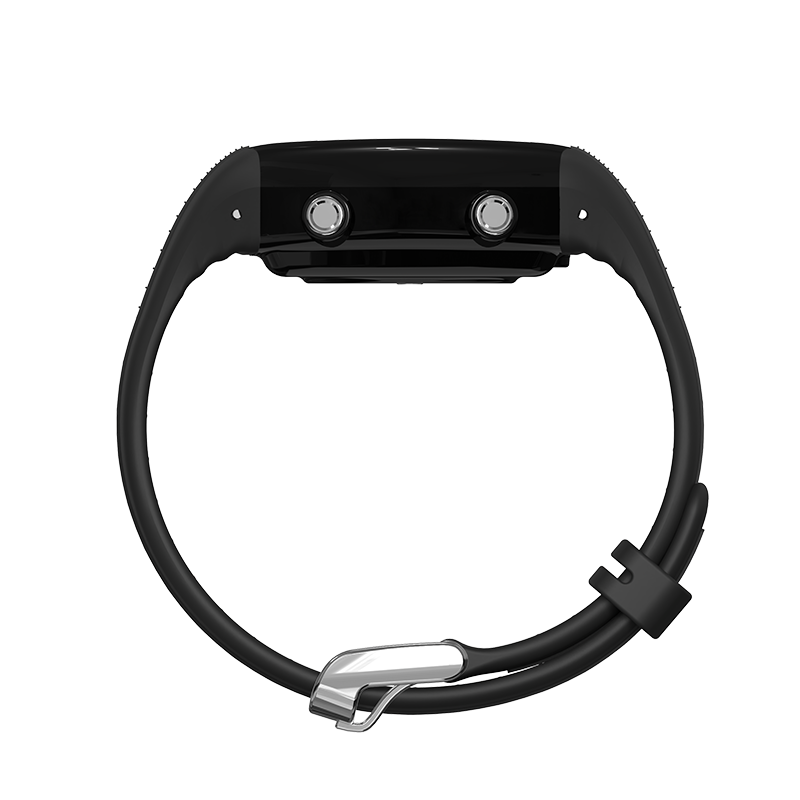

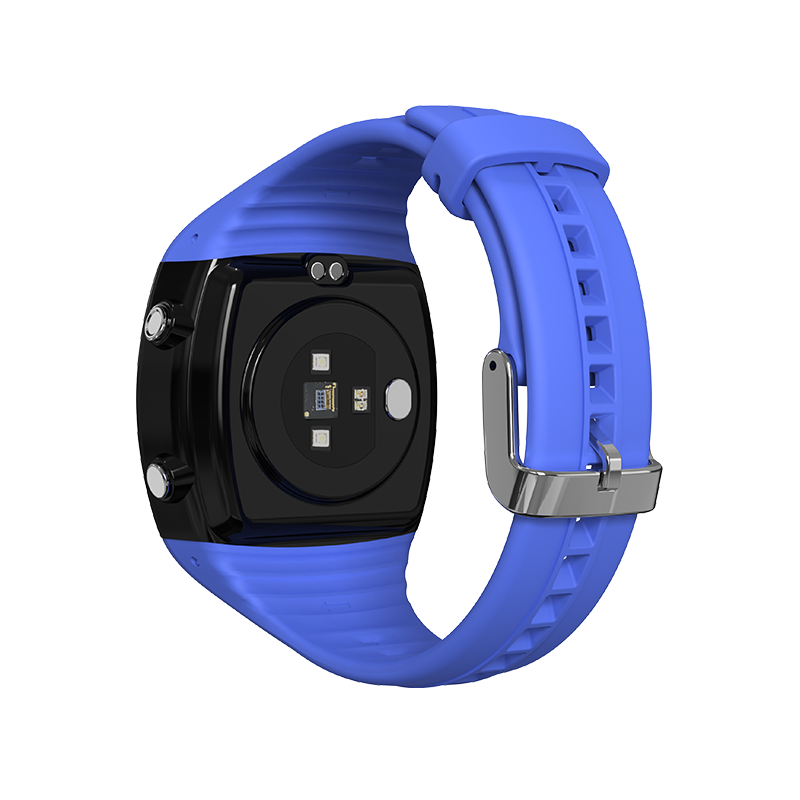

student Bluetooth watch

X3 is a special Internet of things watch for students. It supports ble Bluetooth data broadcasting and can collect multiple exercise physiological parameters in cooperation with Bluetooth data acquisition base station. Support WiFi Positioning, GPS positioning and Bluetooth positioning. The product is suitable for students' daily health management, sports management and behavior management. Provide product development interface, support docking service and support product customization development.

Inquiry
Introduction

student Bluetooth watch


X3 is an Internet of things watch for students

It integrates the industry-leading health monitoring sensor array, which can simultaneously monitor the ambient temperature, body surface temperature, heart rate and blood oxygen. Its high-precision motion algorithm can automatically identify the motion state and sleep state. Support ble Bluetooth data broadcasting, cooperate with Bluetooth data acquisition base station, and realize the acquisition of multiple exercise physiological parameters. Support WiFi Positioning, GPS positioning and Bluetooth positioning. The product is suitable for students' daily health management, sports management and behavior management.

Specification

Essential information

Overall size

45mm *48mm * 15mm

Appearance material and process

ABS plastic + silica gel, environmental protection GB 6675-2014

screen

LCD display 128 * 96 1.0 IPS display

Manipulation

Function key, touch key

Endurance capability

Standby for 5 days

Charging time

2.5h

Battery capacity

300mAh / 3.7V lithium battery

Clip on charging

2 pin pogopin

Core parameters

Chipset

NRF52832

storage

32MB FLASH

LCD display

Color LCD 128 * 96

NB-IOT

Nb-iot2 band information B3 / B5 / B8 / B18 / B26

Built in LDS antenna

Including 3-year NB traffic package

ESIM card 2 * 2, China Mobile, China Unicom

GPS

Support Beidou and GPS dual satellite navigation system and AGPs technology;GPS accuracy < 50m, background request or press SOS key to start GPS 1: punch in to start GPS and Nb needs to send location information;2: Press SOS key to start GPS to upload location information at the same time;

Built in LDS antenna

AGPs assisted positioning

Bluetooth

Ble5.1 supports Bluetooth AOA positioning

2.4GHz

Built in ceramic antenna

WIFI

WiFi Positioning

Ceramic antenna

sensor

6Shaft sensor

Heart rate sensor

Blood oxygen sensor

Temperature sensor

NFC tag

Passive, 13.56M state secret CPU card,

Support access control and small consumption


Function


    A variety of chip modules are built in the product


  Ø  built in Bluetooth chip, support ble5.1 protocol, support Bluetooth AOA positioning.


  Ø  built in RFID chip supports access control and small consumption.


  Ø  built in acceleration and gyro assisted positioning, and motion recognition.


  Ø  built in environment and temperature monitoring sensor, with accuracy up to + - 0.1 degrees.


  Ø  built in blood oxygen sensor to support continuous blood oxygen monitoring.


  Ø Built in Beidou and GPS dual-mode positioning.


  Ø  support WiFi Positioning.


  Ø  built in ESIM card supports nb-iot data reporting.


Application


 Typical application: safety and health management of primary and middle school students



Body temperature monitoring and epidemic prevention and control

IOT watch can continuously monitor the body surface temperature of students' wrists and report the PTZ every 5 minutes. The following functions can be realized through continuous data monitoring and big data analysis:

1The core temperature of human body is deduced from the body surface temperature combined with the ambient temperature to judge whether there is abnormal body temperature.

2The body surface temperature can reflect the warmth of the human body and judge whether the students dress reasonably.

3Continuous blood oxygen monitoring and heart rate to judge whether students have lung infection.

Through attendance and health big data, timely grasp the health status of students in the region, whether there is an epidemic, and use it to decide whether to adopt corresponding strategies, so as to provide a data basis for class suspension and isolation.





Collection of PE class and PE homework

By collecting students' steps and heart rate, and cooperating with the system service

in school:

Physical education data retention

Physical fitness assessment

Site risk management

Effective motion evaluation

Personalized training program

outside school:

Sports homework data collection

Job completion evaluation

Daily activity





Campus safety and student behavior statistics

School positioning, through the positioning of students on campus, track students' behavior.

Prevent personnel gathering, campus bullying and other abnormal behavior tracking.

Prevent students from abnormal behavior, such as crossing the line, climbing, roof and other behavior alarm.

Analyze students' school behavior, statistics, dining, sleeping, sports and time management ability.

Abnormal departure tracking alarm, etc





Off campus safety and behavior tracking management

Campus security, tracking students' behavior through GPS, WiFi and other positioning.

1Fence: the agreed activity range exceeds the alarm.

2Track: active area, track abnormal behavior, and alarm in abnormal area.

3School leaving reminder and home notice

4School departure notice, home WiFi Positioning.





Work and rest statistics and schoolwork burden assessment

Through indoor positioning

1Statistics of students' activities during recess

2Through indoor and outdoor time statistics

3Through sleep statistics

5Through sedentary time statistics

6Activity time statistics

Analysis of students' schoolwork burden and learning efficiency based on the above big data statistics





Evaluation and analysis of students' behavior and mental health

Combined with the above behavior data, heart rate variability analysis and adolescent heart rate evaluation model.

1Assess mental health status

2Early access, psychological counseling

3Lead to catharsis

Improve the overall education level, connect education and teaching from the heart rate level, and improve the quality of education
